Inductive proximity switches for submerged operation has been developed and installed in submarines. To date, we have delivered and installed more then 400 units of proximity switches to different underwater applications.

Technical data
  • Voltage:15 – 30 VDC
  • Indication distance:11mm/ Hysteresis <1mm
  • Output:Max 200mA, NPN, NO
  • Temperature:-20 - 60 ºC

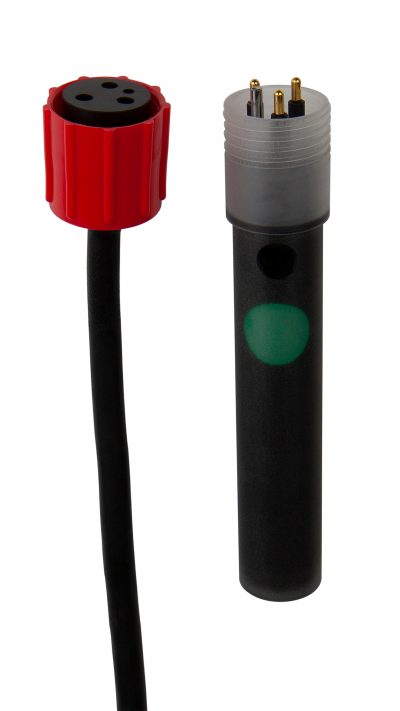

Proximity switch type T2G-MKII

The main features are:

  • Pressure tested to 25 bar
  • Shock resistance tested to 2000g
  • Connection with a Subcon connector to be easily interchangeable
  • Ability to be activated against magnetic as well as non-magnetic materials
  • The same indication distance for Iron, Stainless Steel and Alu-bronze

The proximity switch could be configured to suit various applications upon request. Please contact us for more details.
